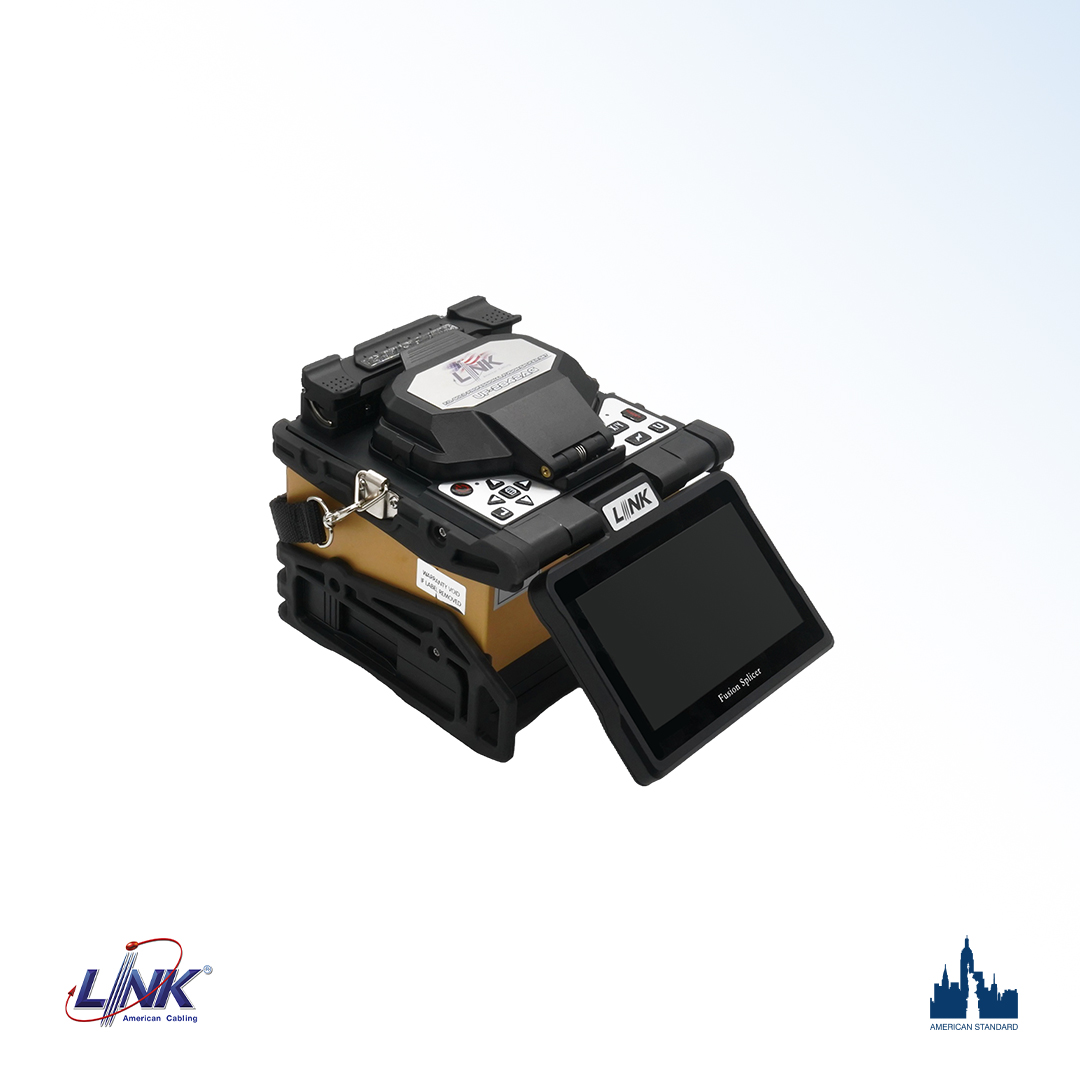

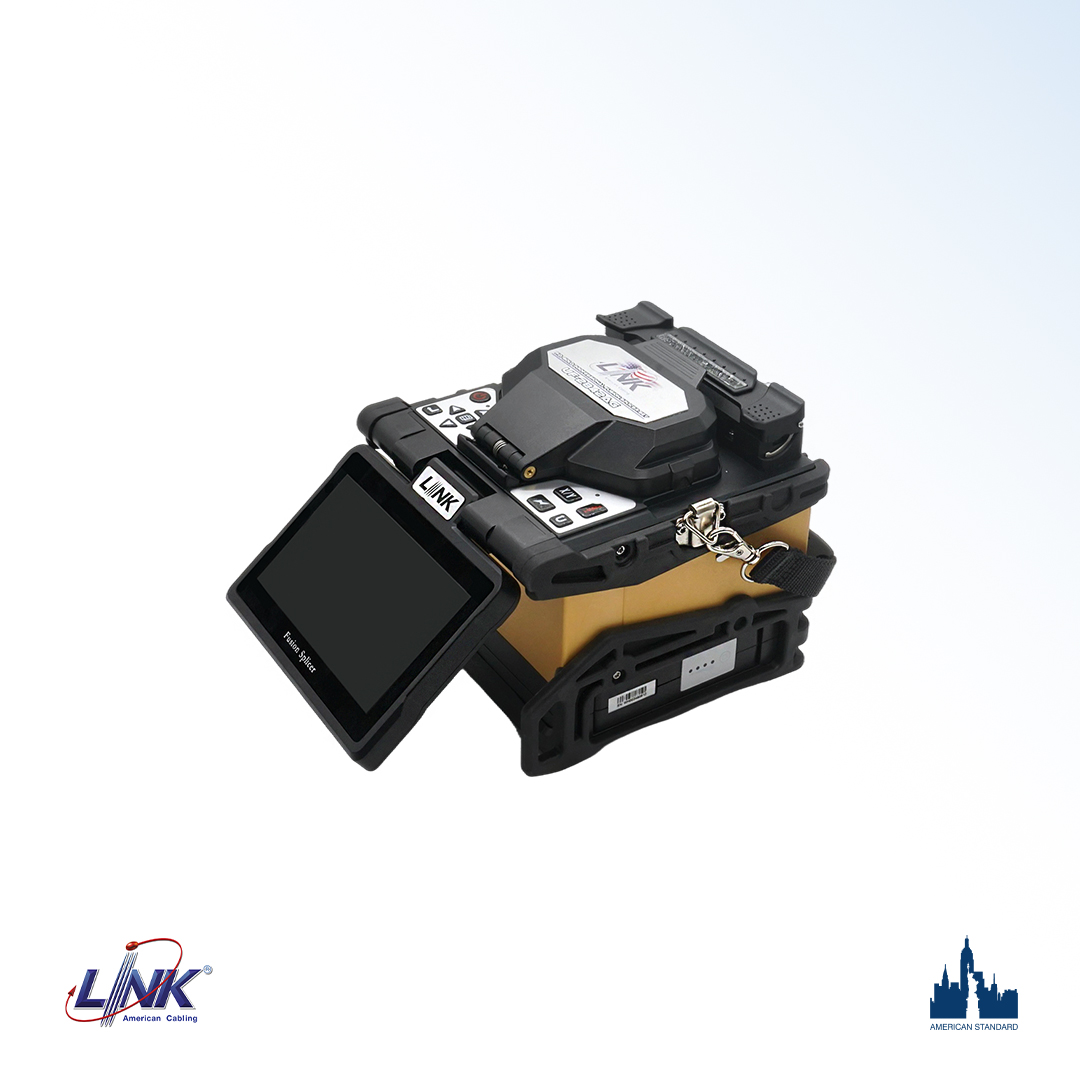

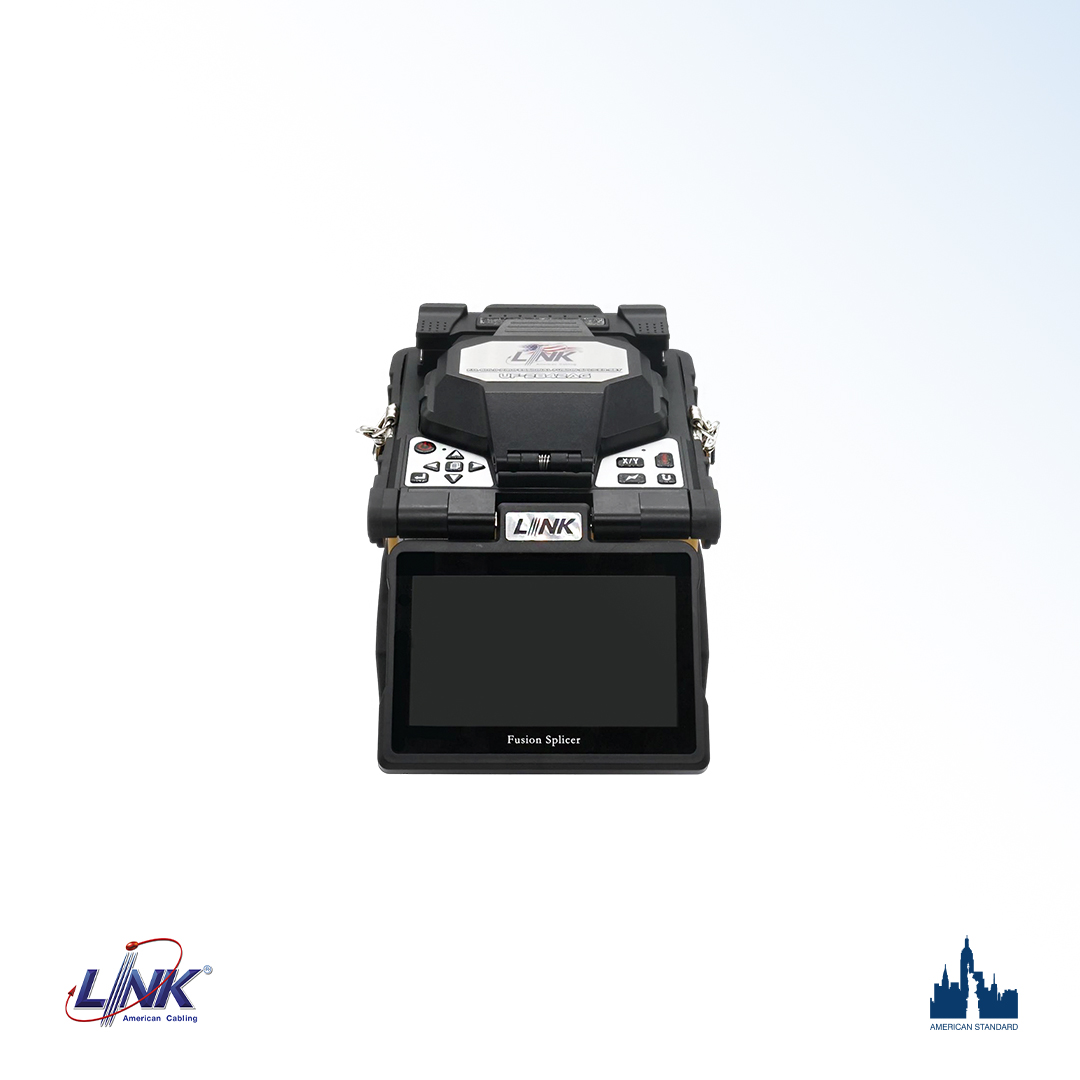

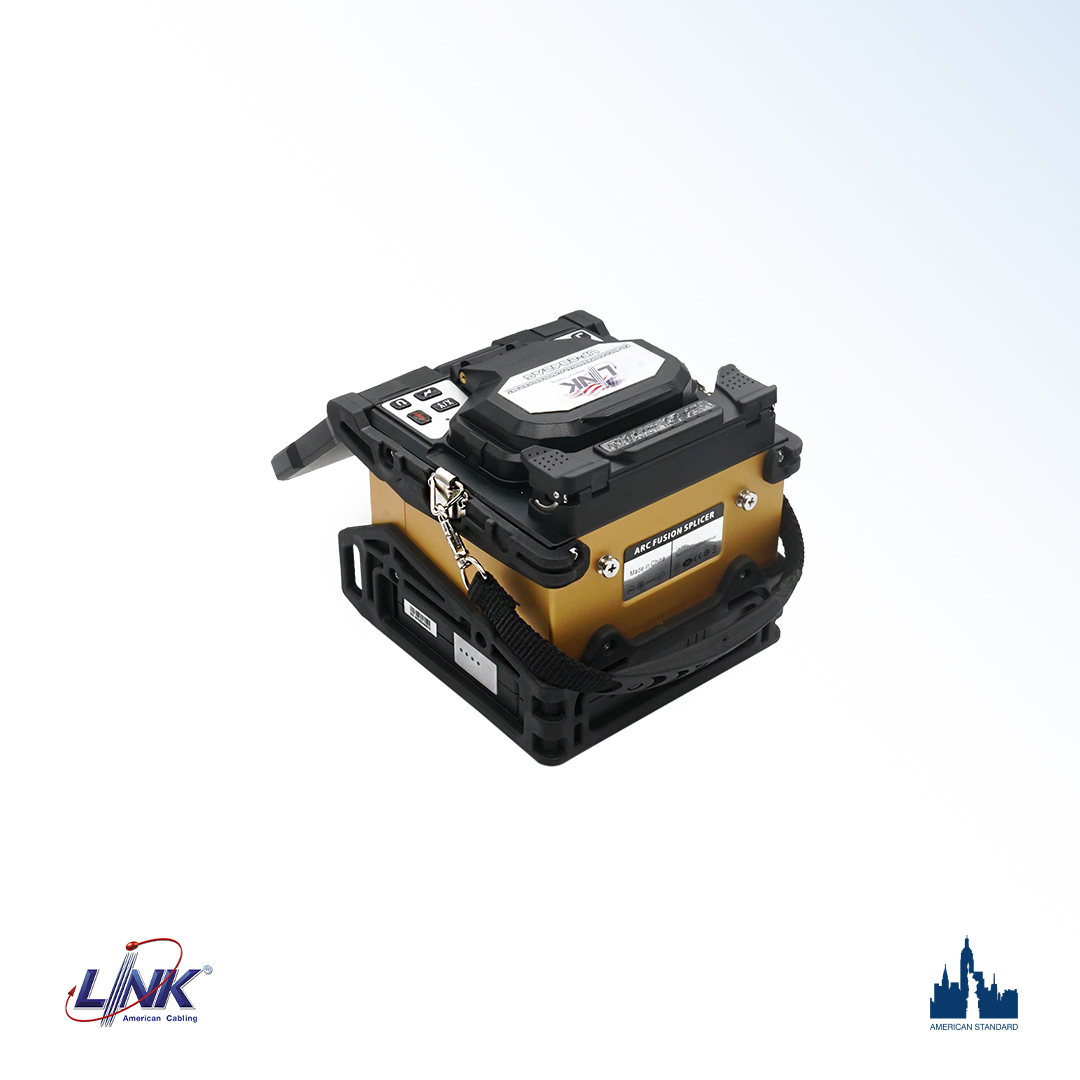

LINK F.O. GOLD PROFESSIONAL FUSION SPLICER SET splicing is the act of
joining two optical fibers end-to-end using heat. The goal is to fuse the two fibers together in
such a way that optical signal passing through the fibers is not scattered or reflected back by
the splice, and so that the splice and region surrounding it are almost as strong as the virgin
fiber itself.

FEATURES AND BENEFITS
• 5 inches high resolution colorful LCD display, image can be turned according to position.
• Average splice time: 8 seconds.
• Average tube-heat time: 20-25 seconds.
• Lithium battery: Rechargeable and up to 250 times of continuous splice and heat after fully
charged.
• One heating program (able to adjust the heating time).
• Applicable Fiber Holder: Flat (2.0x3.0mm), 250μm, 900μm
• Cutting-edge technology for image processing.
• New developed technology providing strong wind and dust resistance.
• Splicing mode: Auto & Manual & Full-Auto
• USB Port (2.0)
• Storing 6,000 groups of latest splice results
• Suitable for field work
• New technology of fiber core alignment (Core to Core), enhanced accuracy
• New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
• New Multipurpose 1+N fixture (Patented technology)
• * 1+N: optional fixtures (for SC/LC/FC connector).
