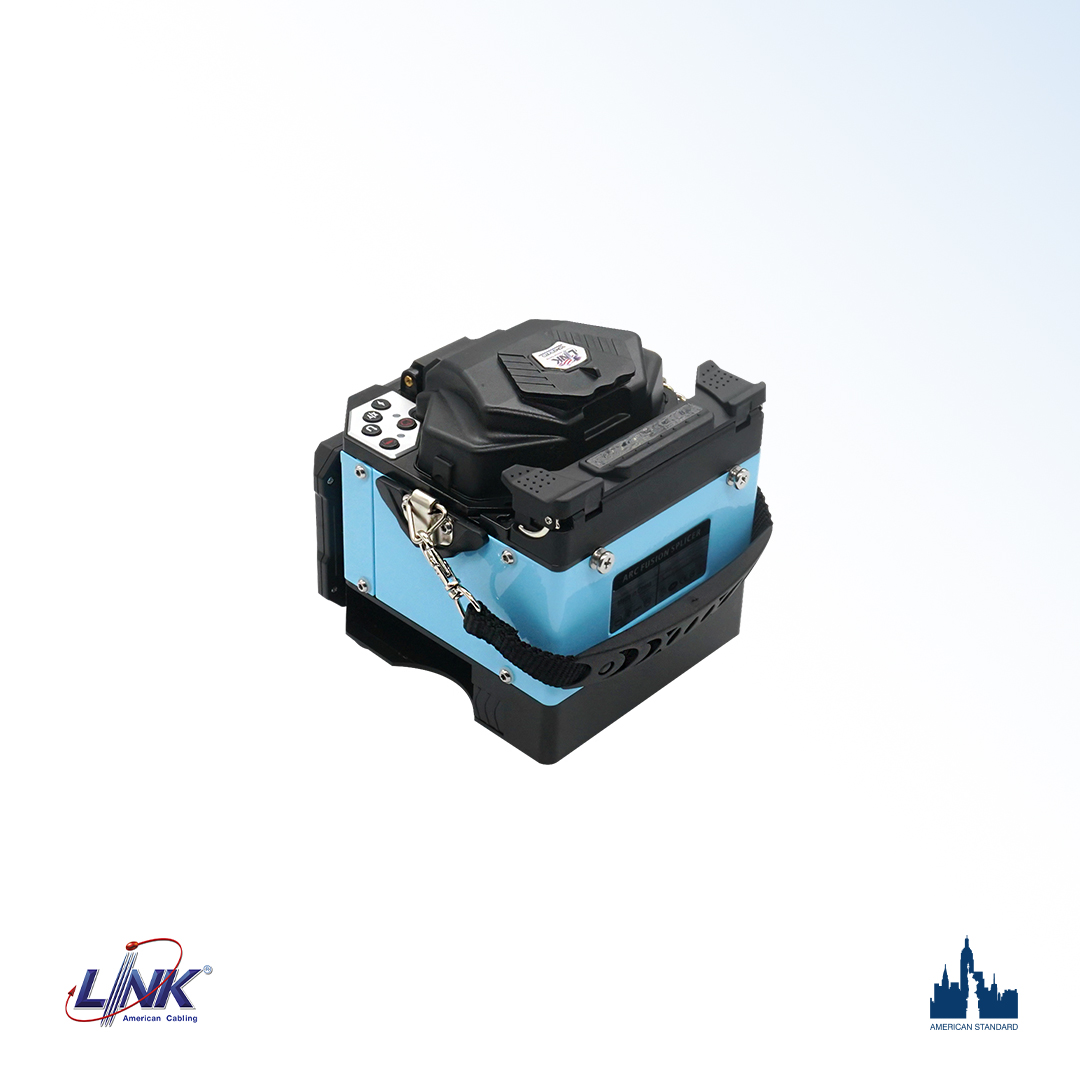

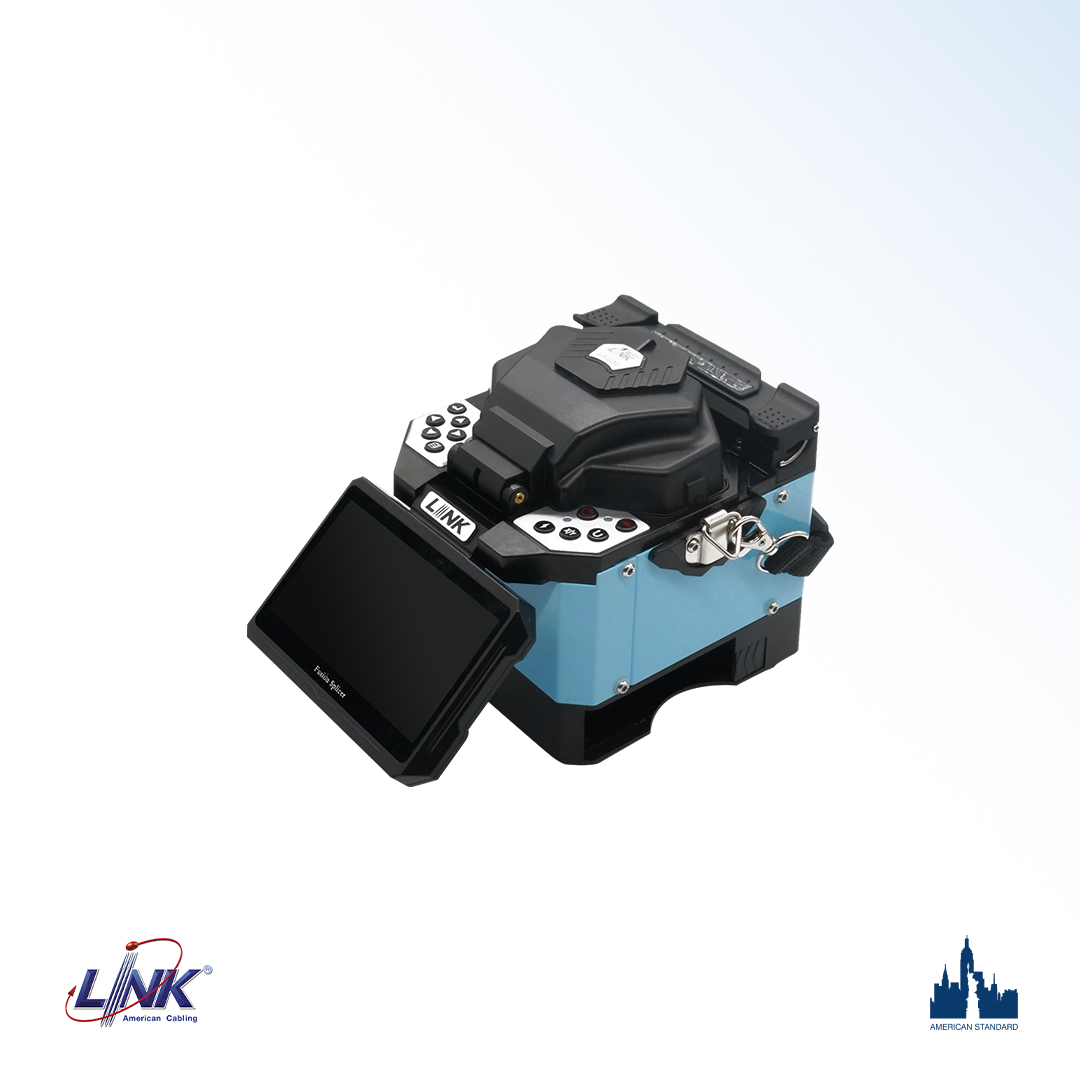

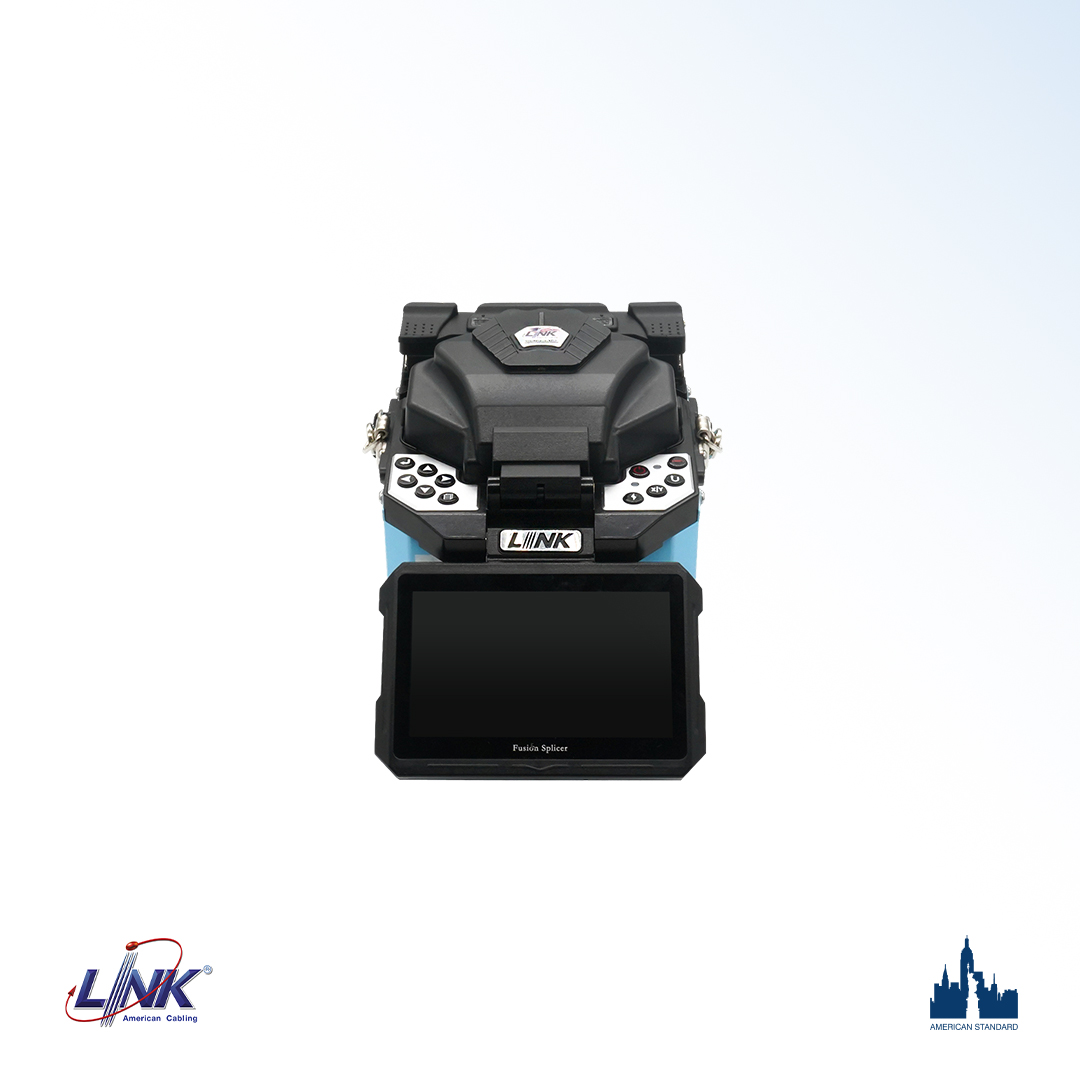

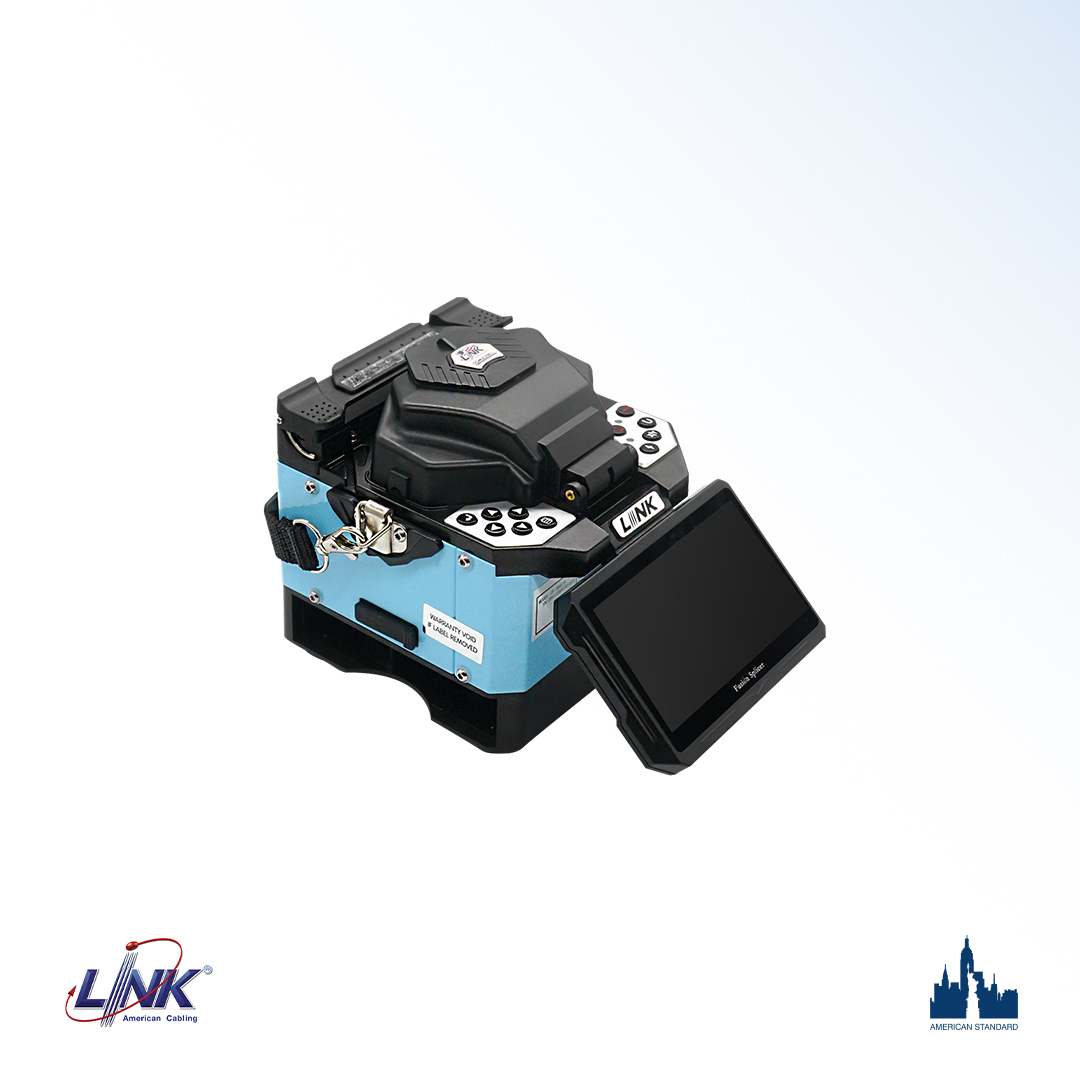

LINK F.O. MINI/BLUE ADVANCE FUSION SPLICER SET is used for joining two
optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light
passing through the fibers is not scattered or reflected back by the splice, and so that the splice
and the region surrounding it are almost as strong as the virgin fiber itself. LINK MINI/BLUE
Fusion Splicer is our latest developed product. It is more concise and smaller in size and has
obtained 2 patents for its new technologies, which incorporate key performance features
expected in an advanced next generation fusion splicer.

FEATURES AND BENEFITS

• Dual cameras, 90°C bi-directional view ,4.3 inches high resolution colorful LCD
display
• Average splice time: 8 seconds.
• Average tube-heat time: 20-25 seconds.
• Lithium battery: Rechargeable and up to 180 times of continuous splice and heat
after fully charged.
• One heating program (able to adjust the heating time).
• Applicable Fiber Holder: Flat (2.0x3.0mm), 250μm, 900μm
• Cutting-edge technology for image processing.
• New developed technology providing strong wind and dust resistance.
• Auto & Manual & Full Auto & Stepping
• Micro USB Port (2.0)
• Storing 6,000 groups of latest splice results
• Suitable for field work
• New technology of fiber clad alignment (Clad to Clad), enhanced accuracy
